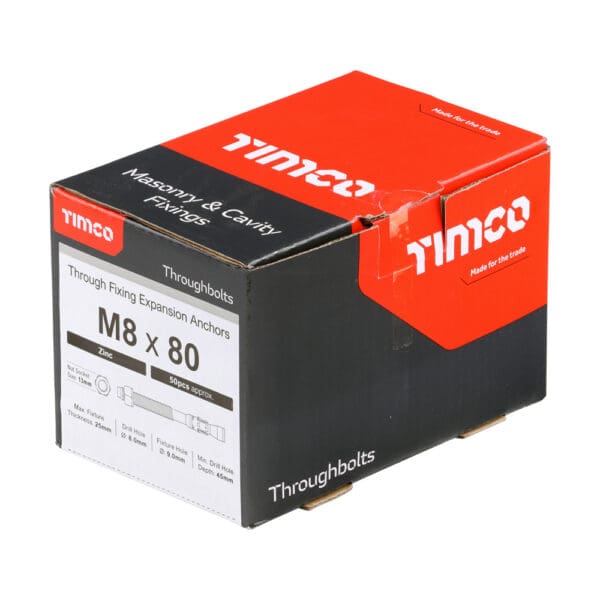

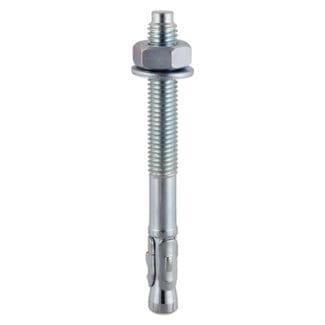

TIMCO Throughbolts Silver – M8 x 80

Pack of 50

0880TB

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.

  • Chamfered head design to prevent damage to thread during installation
  • Zinc plated and passivated (3-5 microns)
  • Manufactured from cold formed carbon steel (grade 5.8)
  • Special expansion clip for rapid installation

M8 x 80mm (50) 20 variations

£13.38£11.15 INC VATEX VAT

Out of stock

Specification

Weight 1.627 kg
Dimensions 13.8 × 9.6 × 9 cm
Pack Qty Unit

Pieces

Pack Type

Box

Diameter

M8

Length

80mm

Nut Socket Size

13mm

Material

Carbon Steel

Finish

Zinc

Drill Hole Diameter

8mm

Fixture Hole Diameter

9mm

Edge Distance

55mm

Max Drilling Thickness

25mm

Min Drill Hole Depth

45mm

Close

Product Variations

Variant Pack Price Stock
M10 x 100mm50£18.72£15.60In stock
M10 x 120mm50£22.00£18.33In stock
M10 x 65mm50£15.29£12.74In stock
M10 x 75mm50£16.37£13.64In stock
M12 x 100mm25£14.04£11.70In stock
M12 x 120mm25£15.73£13.11In stock
M12 x 140mm25£18.13£15.11Out of stock
M12 x 180mm25£21.82£18.18In stock
M12 x 80mm50£23.87£19.89Out of stock
M16 x 105mm25£26.48£22.07In stock
M16 x 125mm25£28.90£24.08In stock
M16 x 150mm15£18.90£15.75In stock
M16 x 175mm15£22.32£18.60In stock
M20 x 130mm10£19.64£16.37In stock
M20 x 160mm10£22.16£18.47Out of stock
M20 x 215mm8£22.02£18.35In stock
M8 x 100mm50£15.22£12.68Out of stock
M8 x 130mm50£15.65£13.04Out of stock
M8 x 50mm100£22.60£18.83In stock
M8 x 65mm100£24.80£20.67In stock
M8 x 80mm Current50£13.38£11.15Out of stock
