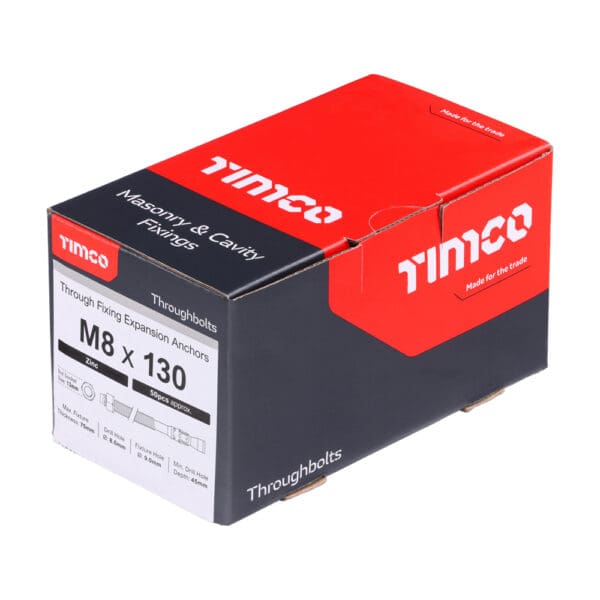

TIMCO Throughbolts Silver – M8 x 130

Pack of 50

08130TB

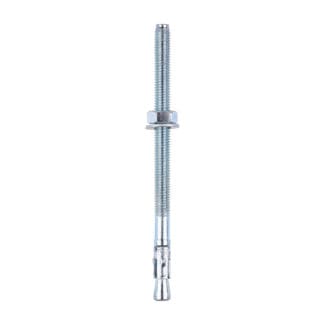

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.

  • Chamfered head design to prevent damage to thread during installation
  • Zinc plated and passivated (3-5 microns)
  • Manufactured from cold formed carbon steel (grade 5.8)
  • Special expansion clip for rapid installation

M8 x 130mm (50) 20 variations

£15.65£13.04 INC VATEX VAT

Out of stock

Specification

Weight 2.301 kg
Dimensions 16 × 9 × 9 cm
Pack Qty Unit

Pieces
Pack Type

Box
Diameter

M8
Length

130mm
Nut Socket Size

13mm
Material

Carbon Steel
Finish

Zinc
Drill Hole Diameter

8mm
Fixture Hole Diameter

9mm
Edge Distance

55mm
Max Drilling Thickness

75mm
Min Drill Hole Depth

45mm
Close

Product Variations

Variant Pack Price Stock
M10 x 100mm50£18.72£15.60In stock
M10 x 120mm50£22.00£18.33In stock
M10 x 65mm50£15.29£12.74In stock
M10 x 75mm50£16.37£13.64In stock
M12 x 100mm25£14.04£11.70In stock
M12 x 120mm25£15.73£13.11In stock
M12 x 140mm25£18.13£15.11Out of stock
M12 x 180mm25£21.82£18.18In stock
M12 x 80mm50£23.87£19.89Out of stock
M16 x 105mm25£26.48£22.07In stock
M16 x 125mm25£28.90£24.08In stock
M16 x 150mm15£18.90£15.75In stock
M16 x 175mm15£22.32£18.60In stock
M20 x 130mm10£19.64£16.37In stock
M20 x 160mm10£22.16£18.47Out of stock
M20 x 215mm8£22.02£18.35In stock
M8 x 100mm50£15.22£12.68Out of stock
M8 x 130mm Current50£15.65£13.04Out of stock
M8 x 50mm100£22.60£18.83In stock
M8 x 65mm100£24.80£20.67In stock
M8 x 80mm50£13.38£11.15Out of stock
