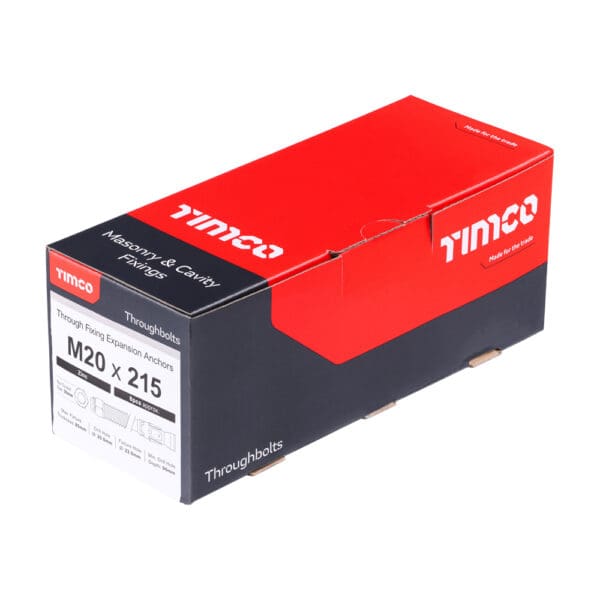

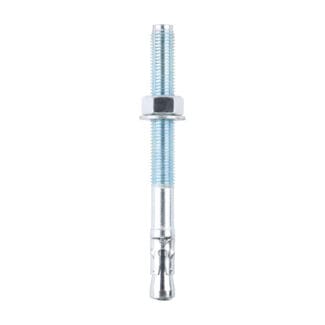

TIMCO Throughbolts Silver – M20 x 215
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
M20 x 215mm (8) 20 variations
£22.02£18.35 INC VATEX VAT
100 In stock
Specification
| Weight | 4.18 kg |
|---|---|
| Dimensions | 23.6 × 9.4 × 9 cm |
| Pack Qty Unit | Pieces |
| Pack Type | Box |
| Diameter | M20 |
| Length | 215mm |
| Nut Socket Size | 30mm |
| Material | Carbon Steel |
| Finish | Zinc |
| Drill Hole Diameter | 20mm |
| Fixture Hole Diameter | 22mm |
| Edge Distance | 120mm |
| Max Drilling Thickness | 85mm |
| Min Drill Hole Depth | 90mm |
