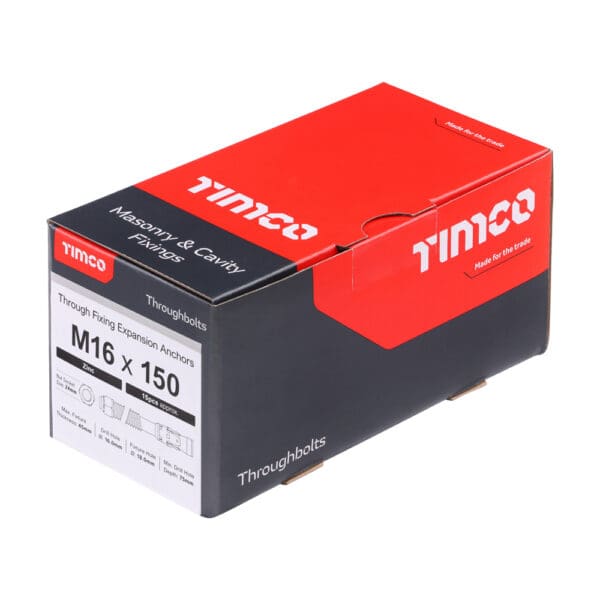

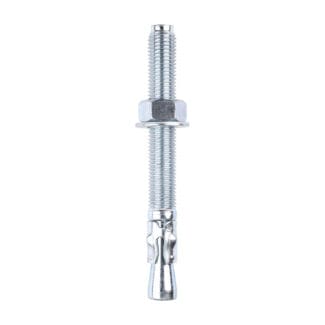

TIMCO Throughbolts Silver – M16 x 150
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
M16 x 150mm (15) 20 variations
£18.90£15.75 INC VATEX VAT
940 In stock
Specification
| Weight | 3.61 kg |
|---|---|
| Dimensions | 18.4 × 9.6 × 9 cm |
| Pack Qty Unit | Pieces |
| Pack Type | Box |
| Diameter | M16 |
| Length | 150mm |
| Nut Socket Size | 24mm |
| Material | Carbon Steel |
| Finish | Zinc |
| Drill Hole Diameter | 16mm |
| Fixture Hole Diameter | 18mm |
| Edge Distance | 100mm |
| Max Drilling Thickness | 45mm |
| Min Drill Hole Depth | 75mm |
