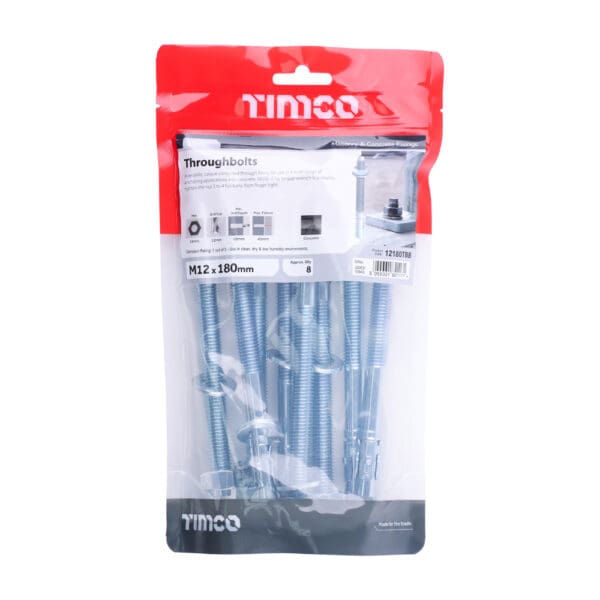

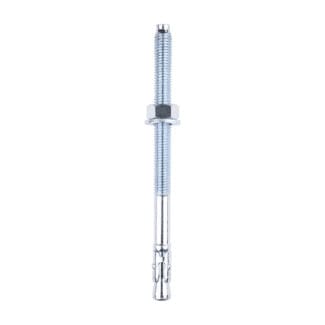

TIMCO Throughbolts Silver – M12 x 180

Pack of 8

12180TBB

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.

  • Chamfered head design to prevent damage to thread during installation
  • Zinc plated and passivated (3-5 microns)
  • Manufactured from cold formed carbon steel (grade 5.8)
  • Special expansion clip for rapid installation

M12 x 180 (8) 4 variations

£9.78£8.15 INC VATEX VAT

330 In stock
1
£9.78£8.15
5
£9.29£7.74
10
£8.80£7.33
15+
£8.31£6.93
Found It Cheaper?
×
Total:

Specification

Weight 1.2 kg
Dimensions 26.1 × 14.7 × 4.8 cm
Pack Qty Unit

Pieces
Pack Type

TIMbag
Diameter

M12
Length

180mm
Nut Socket Size

19mm
Material

Carbon Steel
Finish

Zinc
Drill Hole Diameter

12mm
Fixture Hole Diameter

14mm
Edge Distance

75mm
Max Drilling Thickness

105mm
Min Drill Hole Depth

60mm
Close

Product Variations

Variant Pack Price Stock
M10 x 10018£9.78£8.15In stock
M12 x 10012£9.78£8.15In stock
M12 x 14010£9.78£8.15In stock
M12 x 180 Current8£9.78£8.15In stock
M8 x 5040£9.78£8.15Out of stock
