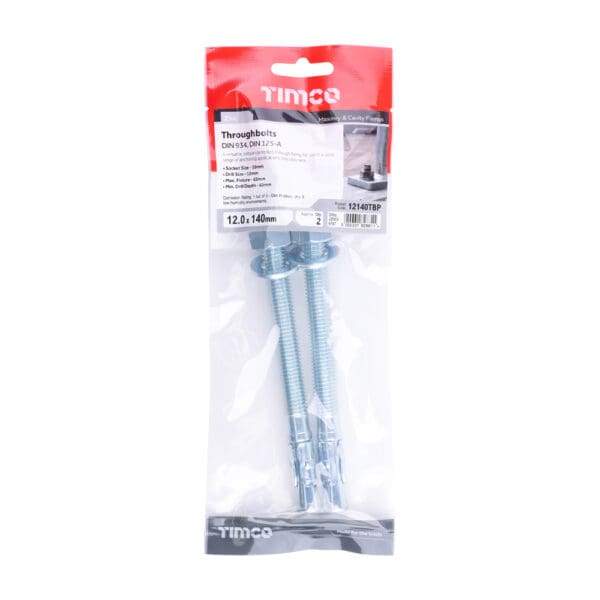

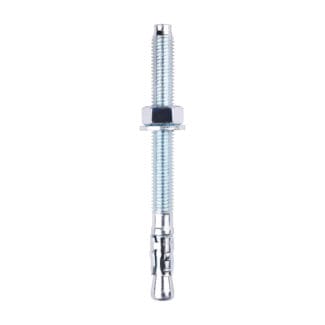

TIMCO Throughbolts Silver – M12 x 140

Pack of 2

12140TBP

A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.

  • Chamfered head design to prevent damage to thread during installation
  • Zinc plated and passivated (3-5 microns)
  • Manufactured from cold formed carbon steel (grade 5.8)
  • Special expansion clip for rapid installation

M12 x 140mm (2) 3 variations

£2.94£2.45 INC VATEX VAT

2670 In stock
1
£2.94£2.45
50
£2.79£2.33
100
£2.65£2.21
150+
£2.50£2.08
Found It Cheaper?
×
Total:

Specification

Weight 0.25 kg
Dimensions 23.2 × 8.7 × 2.2 cm
Pack Qty Unit

Pieces
Pack Type

TIMpac
Diameter

M12
Length

140mm
Nut Socket Size

19mm
Material

Carbon Steel
Finish

Zinc
Drill Hole Diameter

12mm
Fixture Hole Diameter

14mm
Edge Distance

75mm
Max Drilling Thickness

65mm
Min Drill Hole Depth

60mm
Close

Product Variations

Variant Pack Price Stock
M10 x 100mm2£1.97£1.64In stock
M12 x 100mm2£2.94£2.45In stock
M12 x 140mm Current2£2.94£2.45In stock
M8 x 50mm4£1.97£1.64In stock
