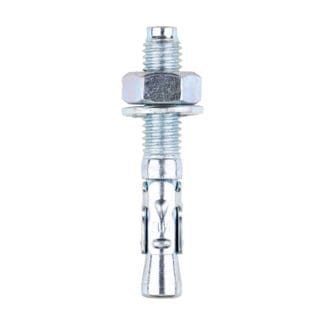

TIMCO Throughbolts Silver – M10 x 65
A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
- Chamfered head design to prevent damage to thread during installation
- Zinc plated and passivated (3-5 microns)
- Manufactured from cold formed carbon steel (grade 5.8)
- Special expansion clip for rapid installation
M10 x 65mm (50) 20 variations
£15.29£12.74 INC VATEX VAT
35 In stock
Specification
| Weight | 2.287 kg |
|---|---|
| Dimensions | 9.6 × 9 × 13.8 cm |
| Pack Qty Unit | Pieces |
| Pack Type | Box |
| Diameter | M10 |
| Length | 65mm |
| Nut Socket Size | 17mm |
| Material | Carbon Steel |
| Finish | Zinc |
| Drill Hole Diameter | 10mm |
| Fixture Hole Diameter | 12mm |
| Edge Distance | 70mm |
| Max Drilling Thickness | 5mm |
| Min Drill Hole Depth | 50mm |
